# Web interface

## Overview

This graphical user interface allows you to interact with the ABC model. The interface performs the following steps to run the model:

1. **Create JSON file** - Generate a JSON file with the input conditions set by the user on the interface.
2. **Send to API** - Send the JSON file to the ABC model API.
3. **Receive results** - Receive the simulation results from the ABC model API.
4. **Visualize results** - Visualize the results on the interface.

## Entry page

This is the entry page of the Advanced Berkeley Comfort Tool. On this page, you can set the conditions for the thermal environment you want to simulate.&#x20;

We will explain in more detail below but let's first try a quick simulation using the following features:

1. **Set the number of conditions** - Add conditions to simulate, such as Condition #1, Condition #2, etc.
2. **Change/Delete condition names** - Rename conditions or delete unnecessary ones.
3. **Set input conditions -** In each condition, configure exposure time and thermal environment settings (e.g., a person is sitting at 25C of air temperature for 60 minutes ).&#x20;
4. **Run simulation** - Click the **"Simulation"** button.

<figure><img src="https://53252572-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzEowbR1lycfIEnfU8Xwf%2Fuploads%2F8sBRIRoNLrBQUc2dZcAo%2Fimage.png?alt=media&#x26;token=f943cfe2-caaf-4295-aeb1-c6a3aeb05aed" alt=""><figcaption></figcaption></figure>

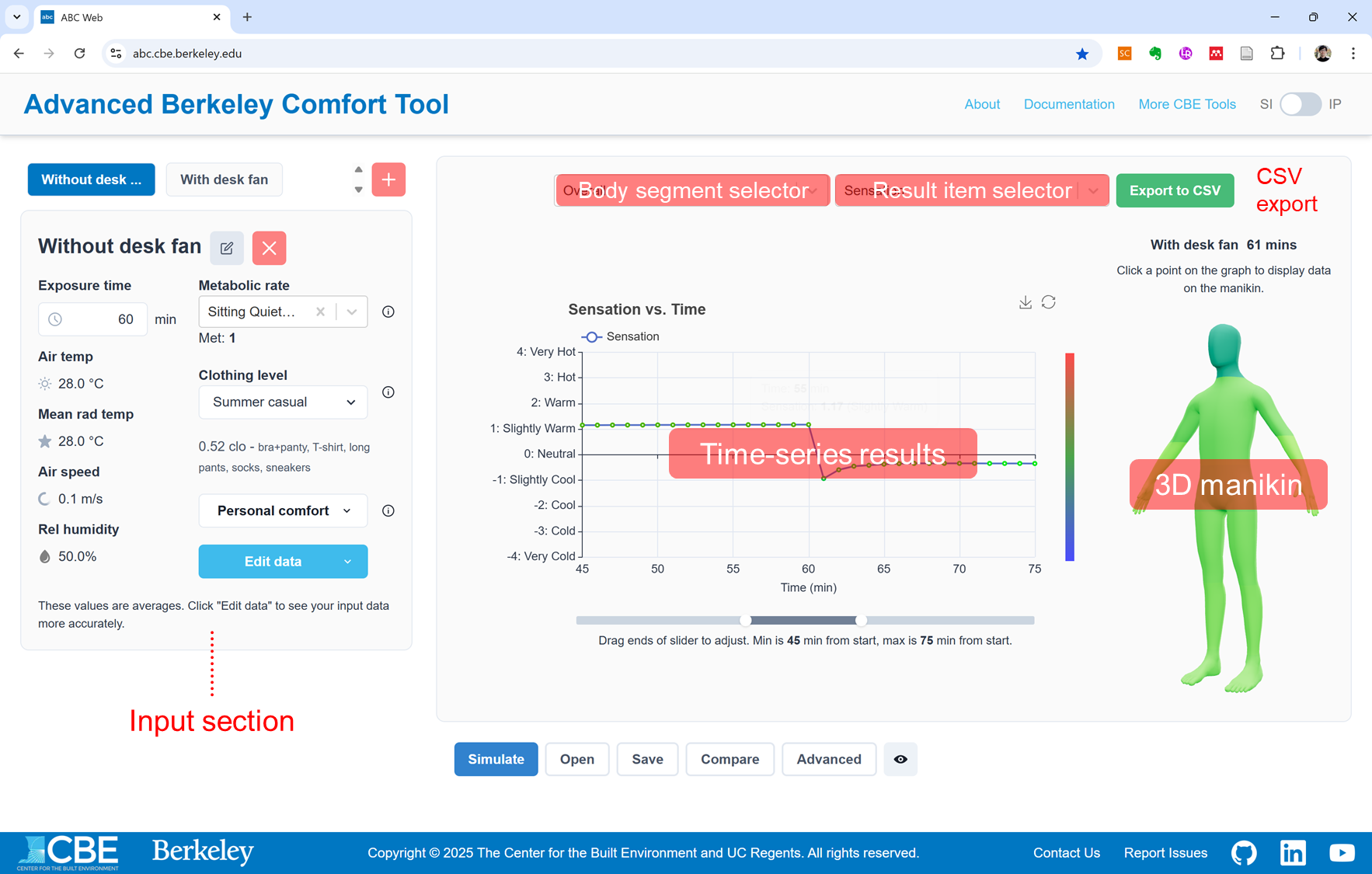

## Main page

This page appears after running a simulation. The left side displays the input conditions, and the right side shows the output results. You can edit the input conditions and run the simulation again on this page.

**Input section (left side):**

* Edit your input conditions here.

**Output section (right side):**

* **Time-series results:** Displays your selected result over time.
* **3D manikin:** Visualizes results for different body parts. Clicking on any time point in the time-series data updates the manikin with data from that moment.
* **Body segment selector:** Select different body segments (Overall, Head, Chest, Arm, etc.) to display.
* **Result item selector:** Select result items (Comfort, Sensation, Skin temperature, Core temperature, etc.) to display.
* **CSV export button:** Save all the simulation results to your local device.

<figure><img src="https://53252572-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzEowbR1lycfIEnfU8Xwf%2Fuploads%2FpCLcNatwZkkPih1Bislo%2Fimage.png?alt=media&#x26;token=0cc6c67f-0a8d-4160-aede-d14990f58ea7" alt=""><figcaption></figcaption></figure>
